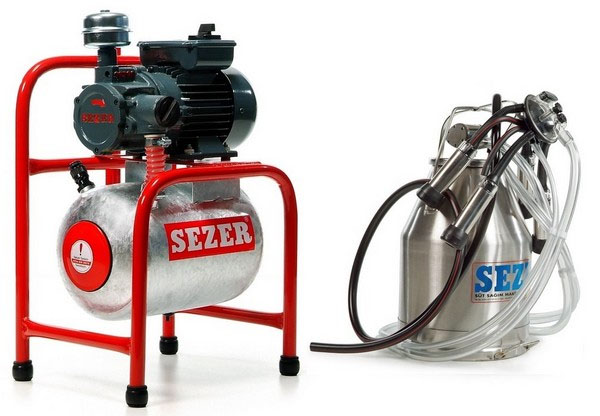

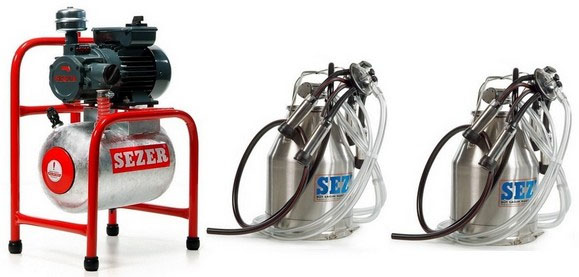

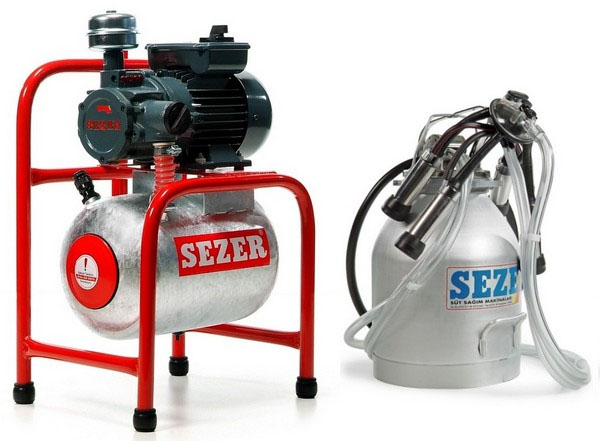

Bucket Milking Line
The bucket milking line is conceptually similar to the portable milking machines. In that milk is collected using a vacuum source delivered at a pulsating frequency
and stored in a bucket dedicated to each milking cluster. However, unlike the portable machines, the bucket milking line provides a central vacuum source that can
be shared across a large number of milking clusters. This design helps avoid the need to carry a dedicated vacuum pump for each bucket. A central vacuum source is
cost effective and easier to maintain when a larger number of cows need to be milked. The system is electrically powered but is also optionally available with a gasoline
engine.
Given the above, the bucket milking line is the logical next step for farmer's moving up from portable milking machines. It is manufactured in Turkey and meet strict
Conformité Européene (CE) standards.
Specifications
Model
SSVP 200
Height (m)
0.71 meters
Width (m)
0.44 meters
Length (m)
0.36 meters
Weight (Kg)
34 Kg
Chasis Paint
Red
Power (KW)
0.55 KW
Voltage (V)
220 volts at 50 Hz
Buckets
2
Bucket Volume (Liters)
30 Liters
Flow Rate (Liters/minute)
200 Liters/minute
Vacuum Tank (Liters)
17 Liters
Pump RPM
1,450 RPM
