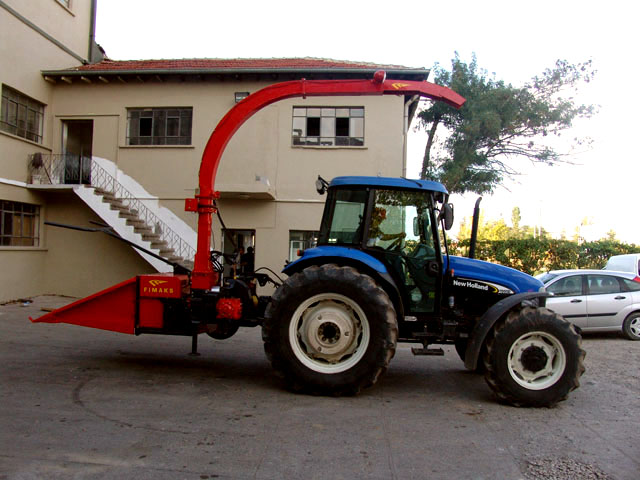

Row Independent Harvester

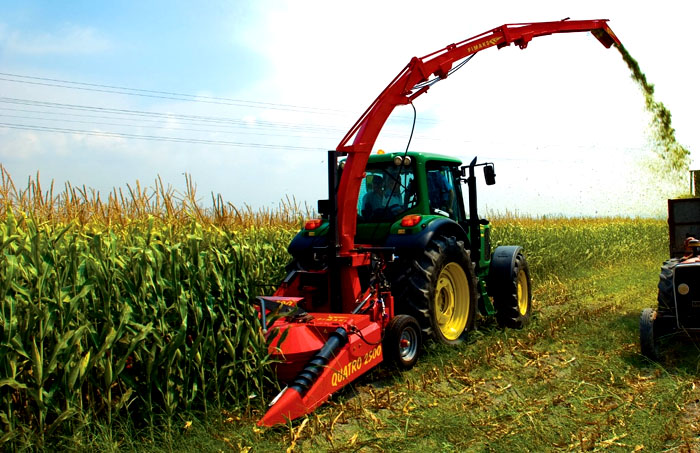

This harvester operates independently of the plant rows. It is available in two models: the Big Drum and the Quattro. The Big Drum offers

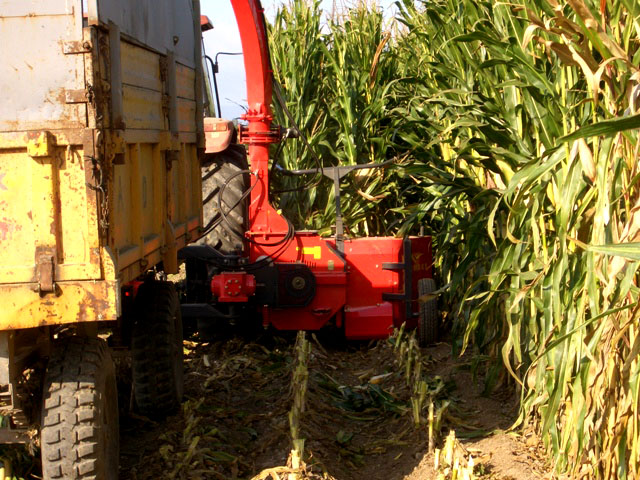

a cutting width of 1.25 meters while the Quattro offers a cutting width of 2.5 meters. The machine chops the maize and propels it into a trolley. It operates
in the same configuration as the forage harvester i.e. a tractor tows a row independent harvester as well as a trolley. Depending on the model,
it can harvest up to 8 acres/hour. High productivity and lower costs offered by the machine directly contribute towards improving the farm's efficiency
and increasing its milk yield.
The Row Independent Harvester is manufactured in Turkey by Fimaks Makina A.s. and meets strict
Conformité Européene (CE)
standards.
Photos
Specifications
Model

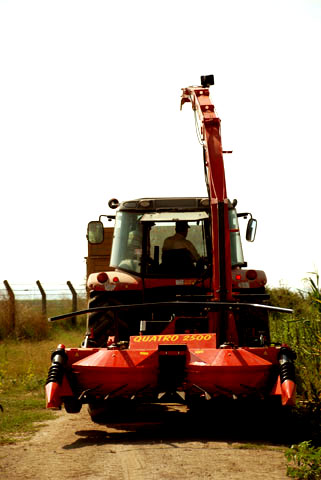

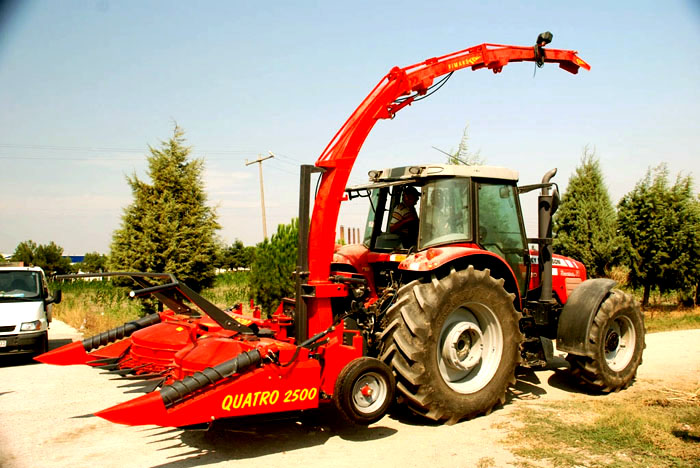

Quattro 2500
Work Width (m)
2.50
Length (m)
2.65 meters
Height (m)
4.20 meters
Width (m)
2.70 meters
Weight (Kg)
2,200 Kg
Number of Knives
12
Tires
2 X 185/80 R14
3 pt. Hitch
Cat II - III
PTO (rpm)
1,000 rpm
Minimum Power Requirement (hp)
150 hp
Chopping Length (mm)
4.5 mm.
Capacity
8 acres/hour

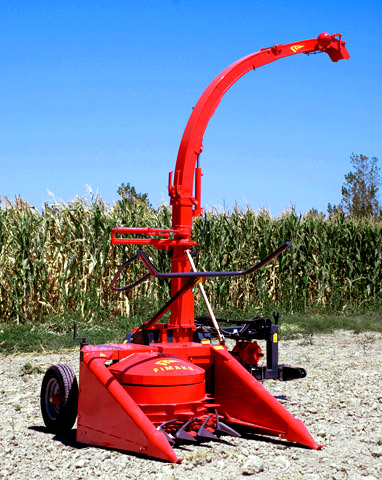

Model

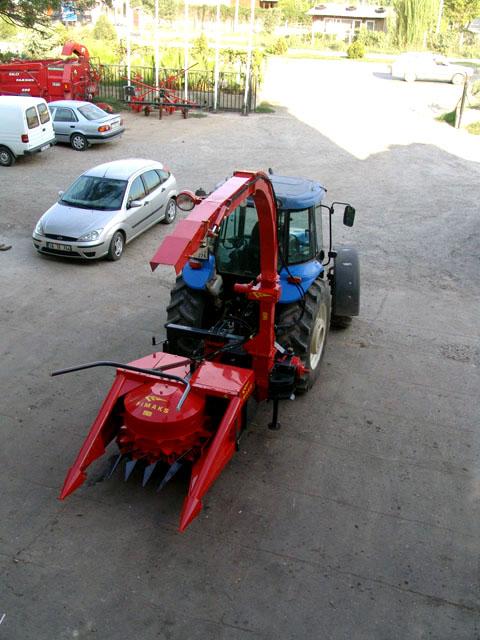

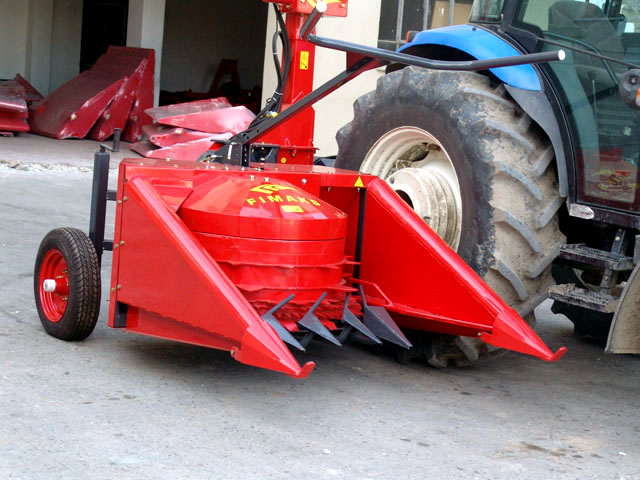

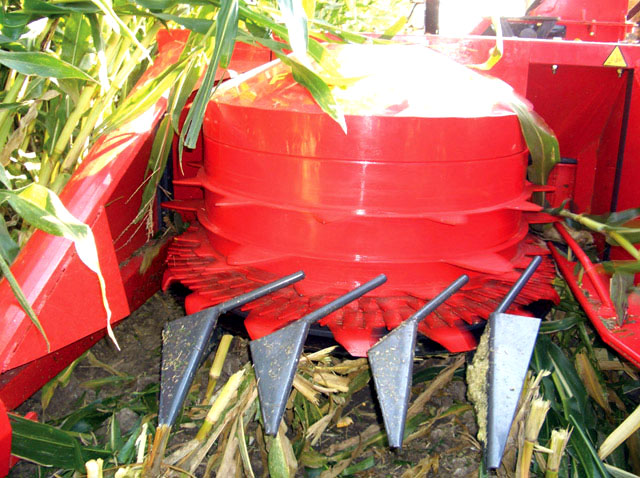

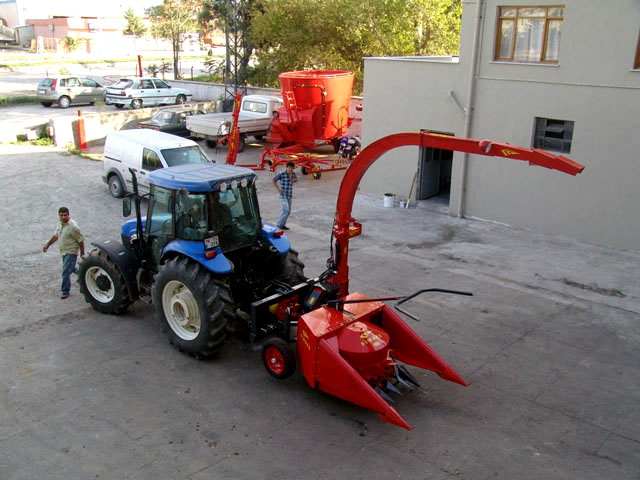

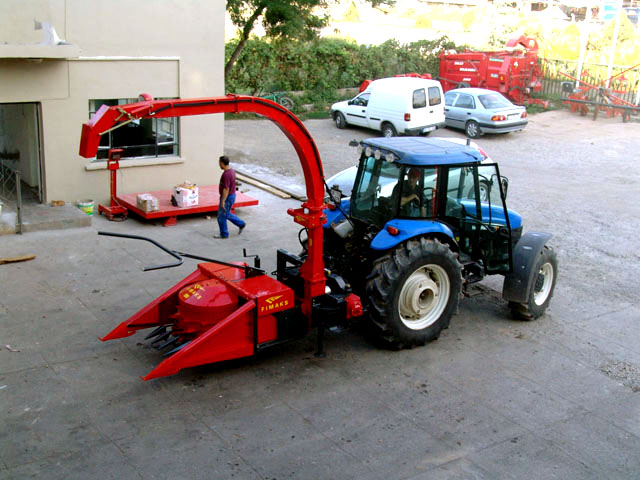

BIGDRUM
Number of Rows
2
Working Width (m)
1.25 meters
Length (m)
3.05 meters
Height (m)
3.96 meters
Width (m)
3.29 meters
Height chute folded down (m)
1.94 meters
Weight (Kg)
1,350 Kg
Number of Knives
10
Number of Blowers
10
Tyre
165/80 R13
3 pt. Hitch
Cat II
PTO (rpm)
540 rpm
Minimum Power Requirement (hp)
90 hp
Chopping Length (mm)
4.5-6-10-15 mm
Capacity
49 tons/hour
