Hay Rake
The mechanical hay rake gathers dried hay left in the field by machines such as the disc mower and lays it out in uniform rows. This facilitates hay collection and is
essential when using in-field balers. Amongst other benefits such as reducing labor count, the hay rake lowers hay collections costs. It is available in
various variants.
The mechanical hay rake is manufactured in Turkey by Fimaks Makina A.s. and meets strict
Conformité Européene (CE)
standards.

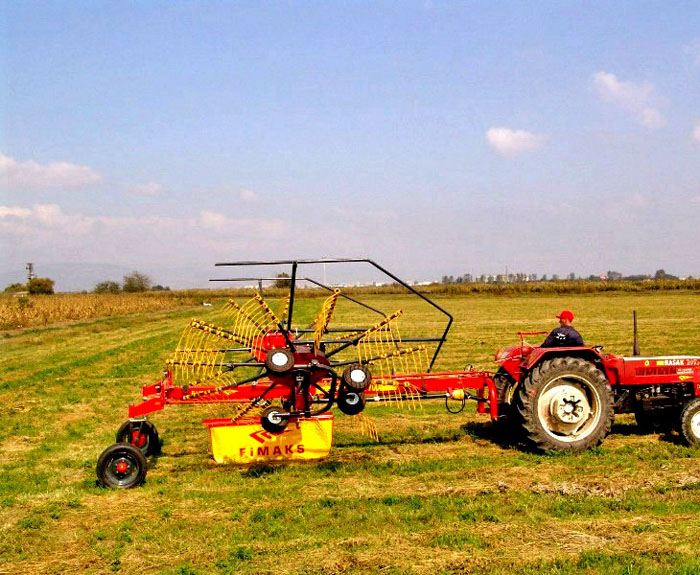

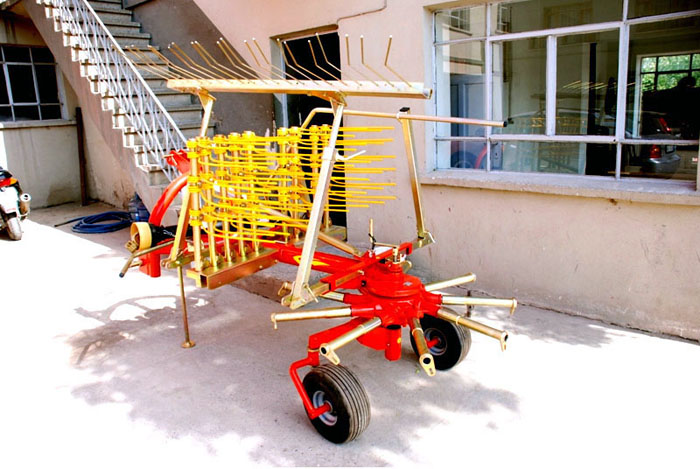

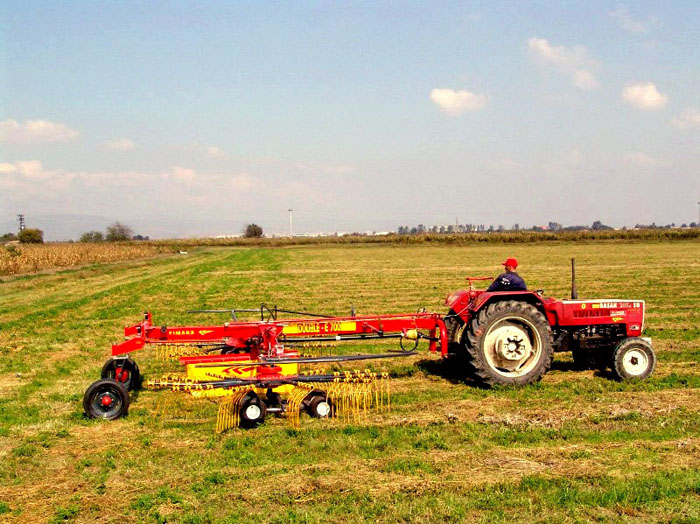

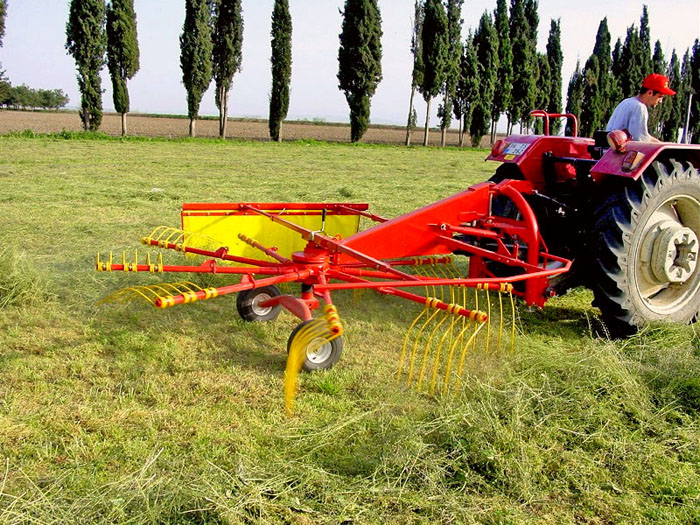

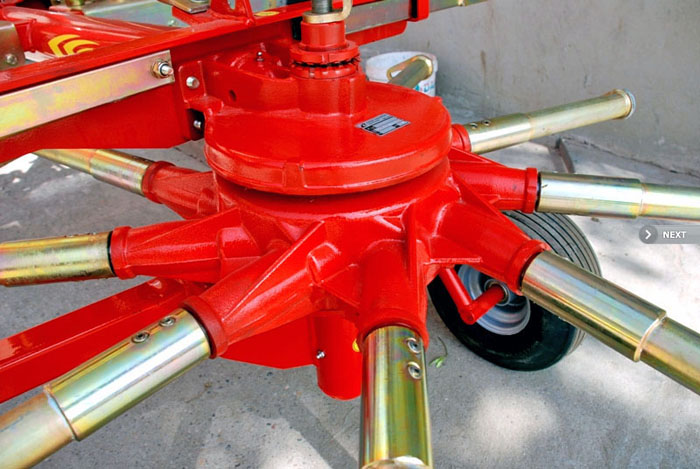

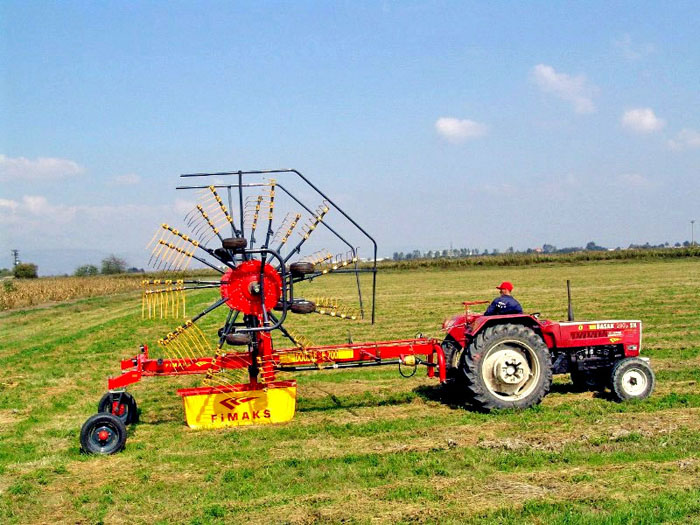

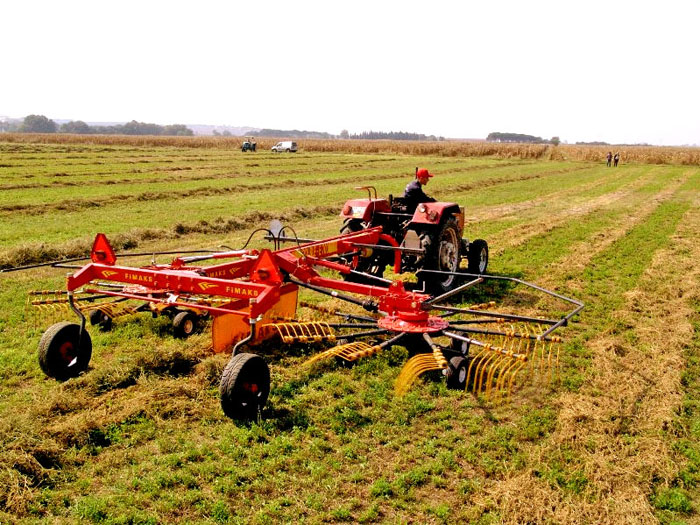

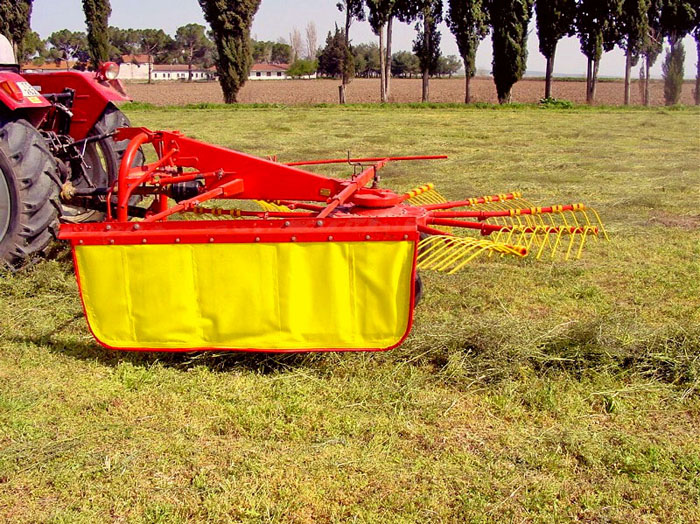

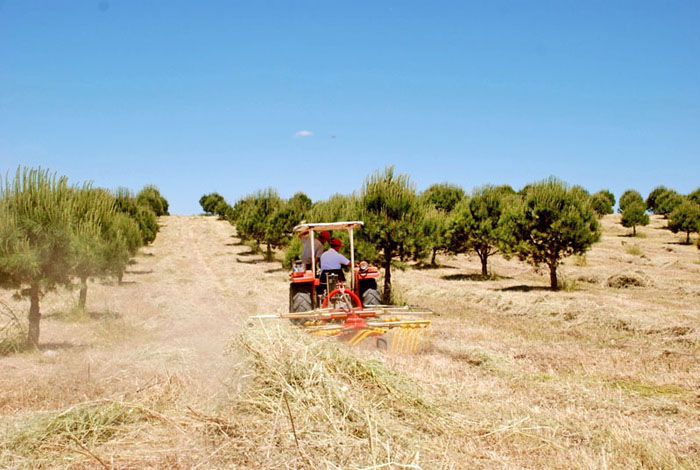

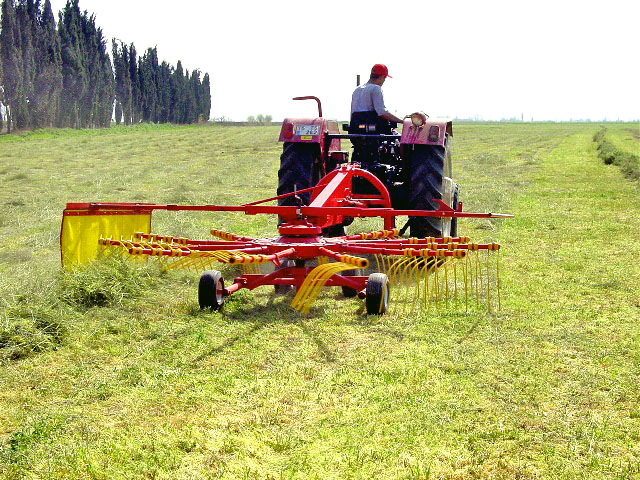

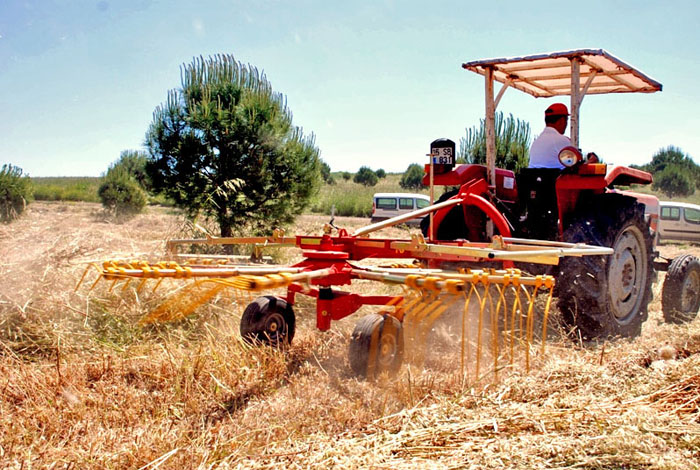

Photos
Specifications
Model
FMR 330
Working Width (m)
3.30 meters
Ferry Width (m)
2.10 meters
Height (m)
1.00 meters
Weight (Kg)
330
Tires
15 X 6 6PR
Number of Rotors
1
Number of Arms
9
Number of Springs on Arm
3
Hitch
Cat. II
Power Requirement (hp)
20 hp
Model
FMR 440
Working Width (m)
4.0 meters
Ferry Width (m)
2.65 meters
Height (m)
1.20 meters
Weight (Kg)
500
Tires
15 X 6 6PR
Number of Rotors
1
Number of Arms
11
Number of Springs on Arm
4
Hitch
Cat. II
Power Requirement (hp)
45 hp
Model
FMR 700
Working Width (m)
7.0 meters
Ferry Width (m)
2.85 meters
Height (m)
1.50 meters
Weight (Kg)
1,300
Tires
15 X 6 6PR
Number of Rotors
2
Number of Arms
22
Number of Springs on Arm
4
Hitch
Cat. II
Power Requirement (hp)
50 hp
