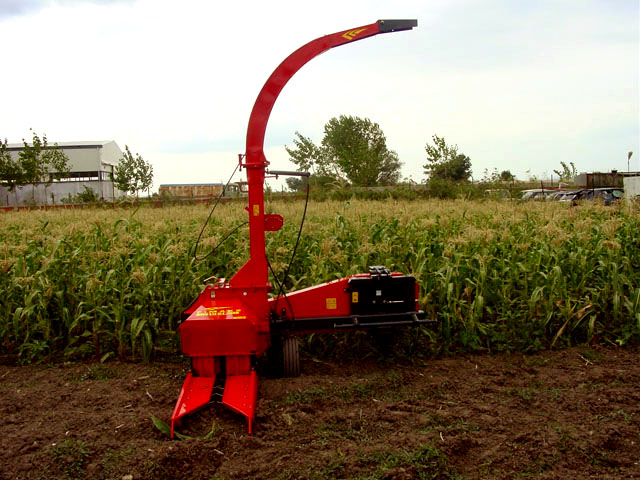

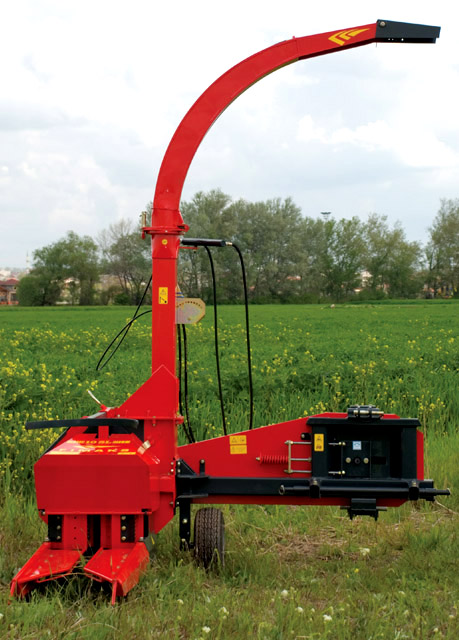

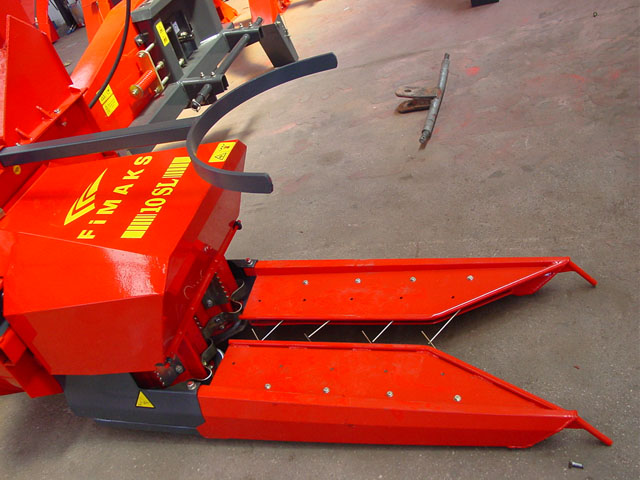

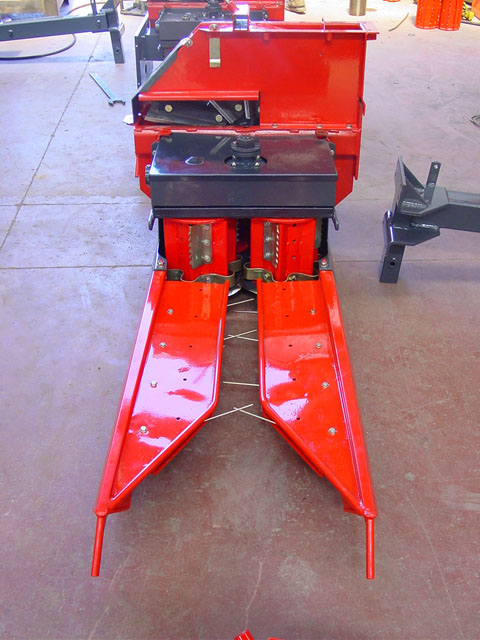

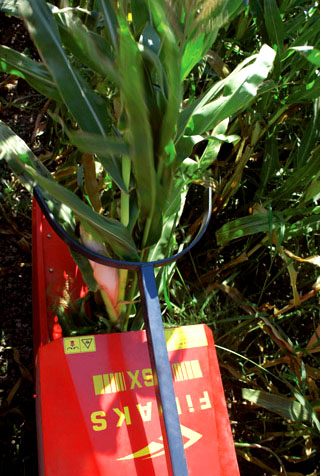

Maize Harvester

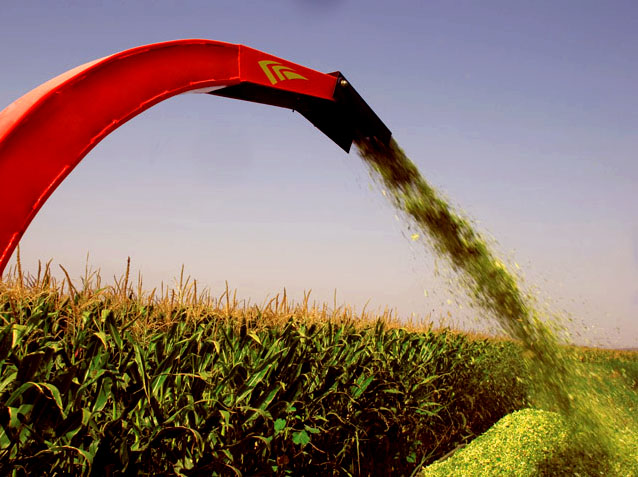

The maize harvester is available in three models. The single row variants harvest one row while the twin row version can harvest two rows at a time. Upon cutting

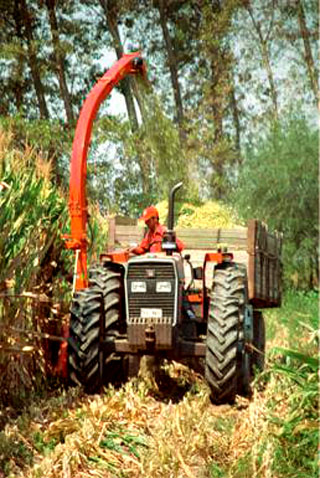

the maize, the machine chops it and then propels it into the trolley. The operating configuration is similar to the forage harvester i.e. a tractor tows
a maize harvester as well as a trolley. The machine can harvest up to 49 tons of maize/hour. High productivity and lower costs offered by the machine directly
contribute towards improving the farm's efficiency and increasing its milk yield.
The Maize Harvester is manufactured in Turkey by Fimaks Makina A.s. and meets strict
Conformité Européene standards (also known as
CE).

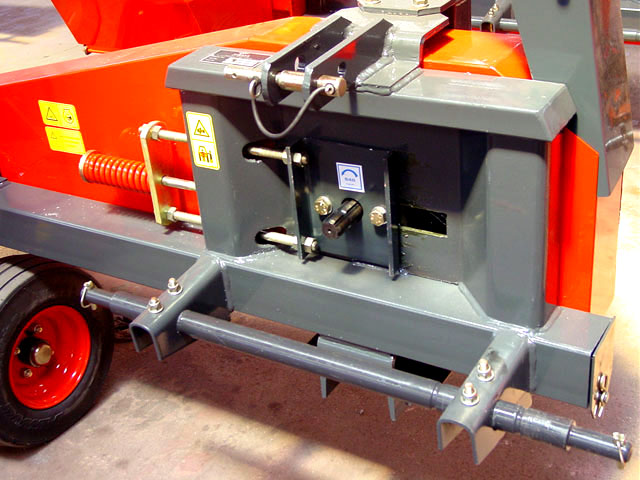

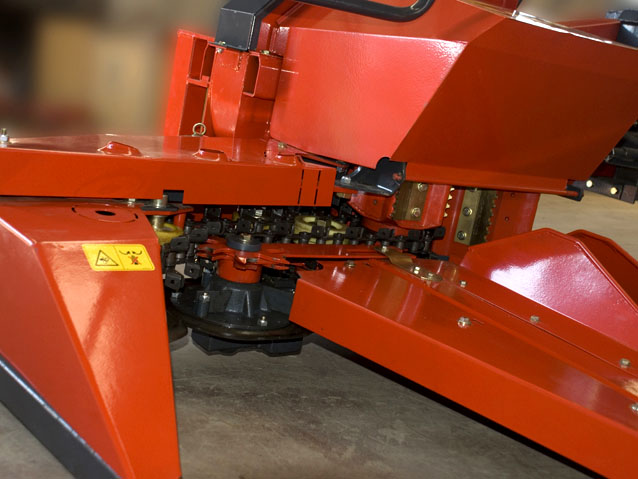

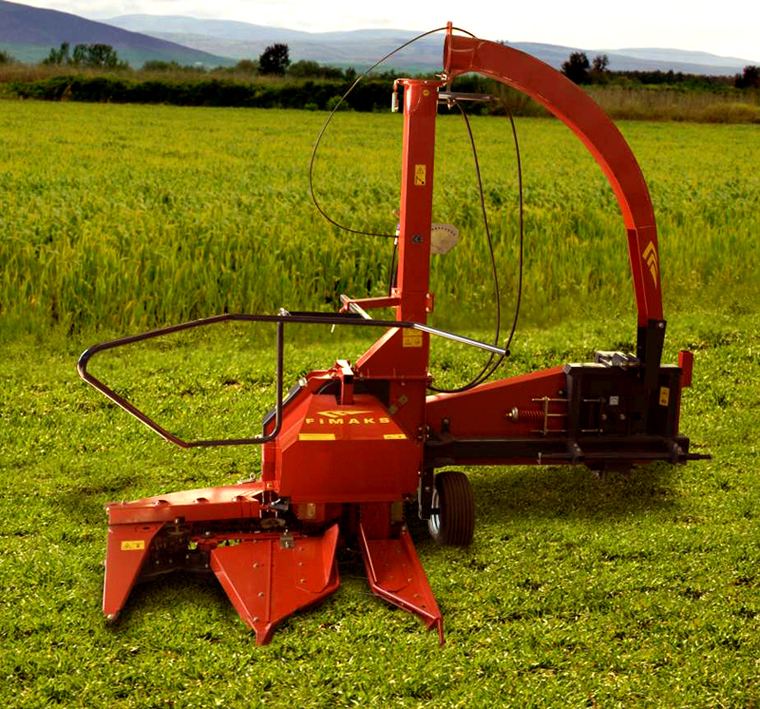

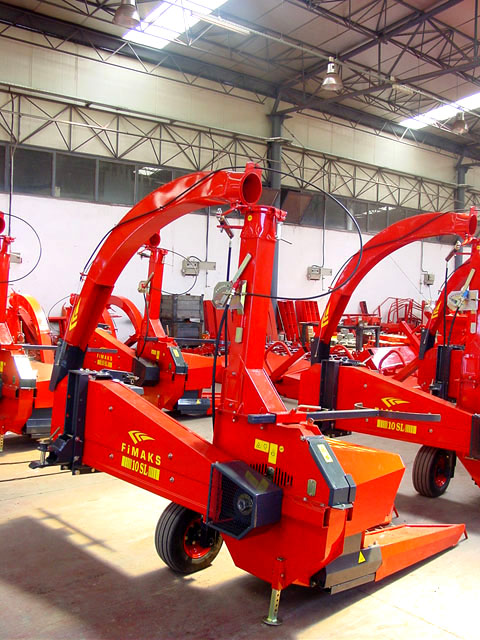

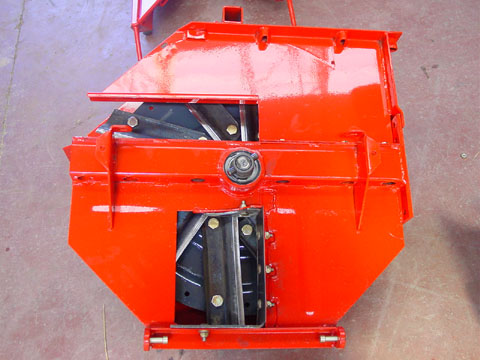

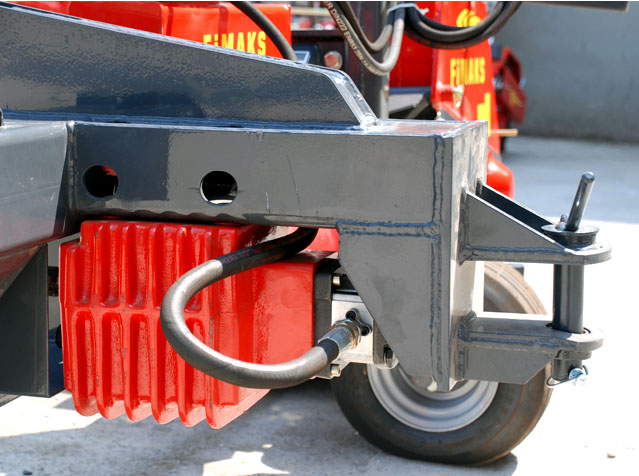

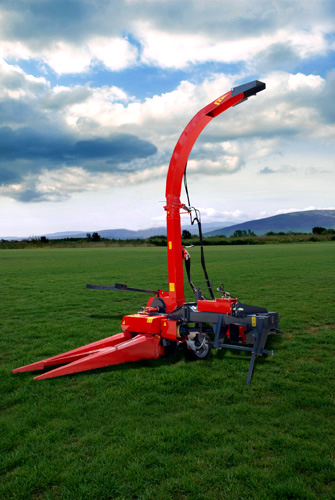

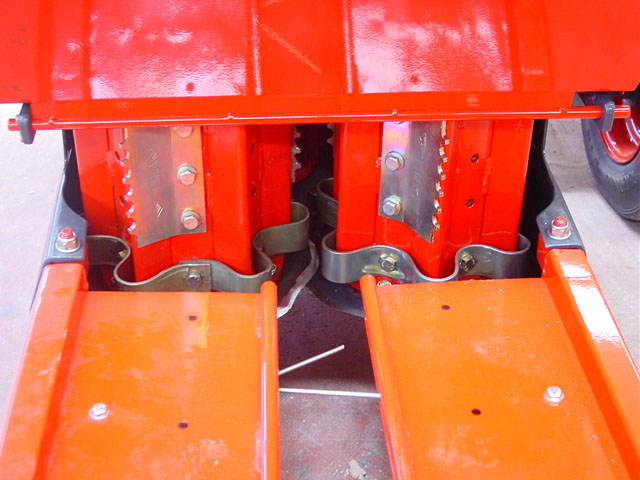

Photos
Specifications

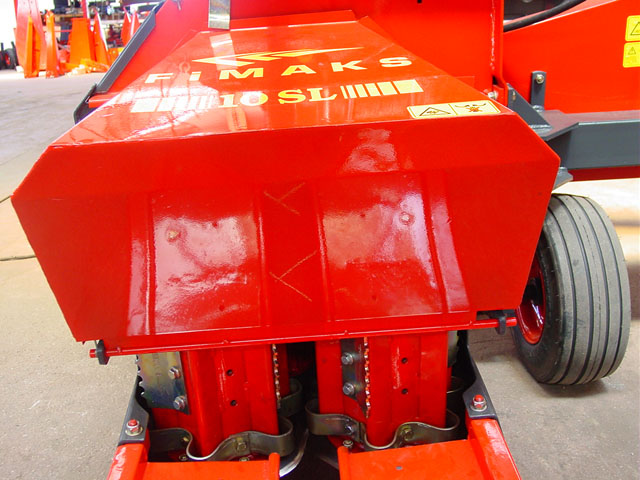

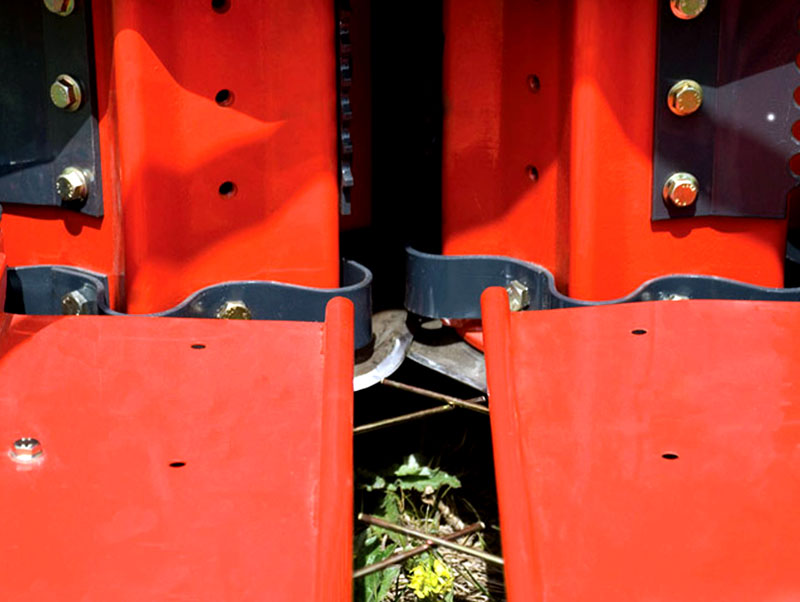

Model
MSX10SL
Number of Rows
1
Length (m)
2.09 meters
Height (m)
3.25 meters
Width (m)
2.24 meters
Height chute folded down (m)
2.2 meters
Weight (Kg)
550 Kg
Number of Knives
10
Number of Blowers
5
Tire
16.5 X 6.5-8 6PR

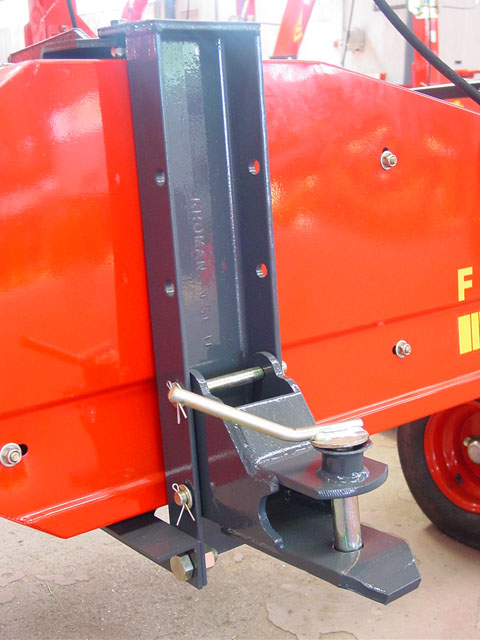

3 pt. Hitch
Cat II
PTO (rpm)
540 rpm
Minimum Power Requirement (hp)
45 hp
Maximum Permissible Power (hp)
120 hp
Chopping Length (mm)
4.5 - 6 - 10 - 15 mm.
Capacity
49 tons/hour

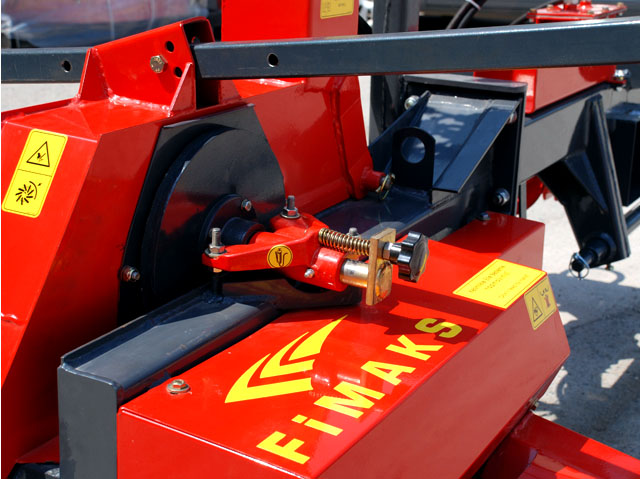

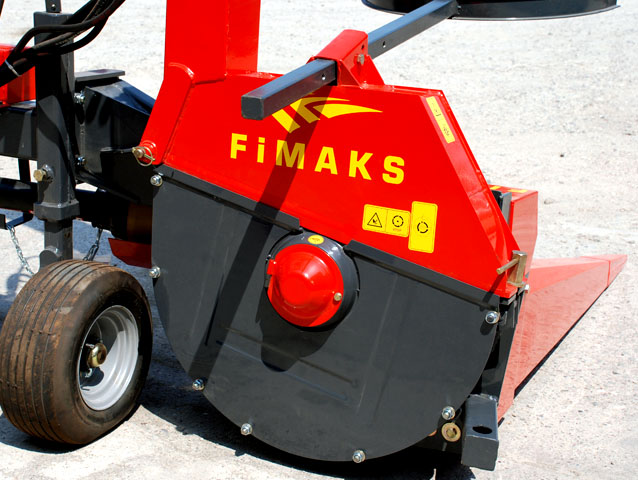

Model
MS12SL
Number of Rows
1
Length (m)
3.45 meters
Height (m)
3.10 meters
Width (m)
2.40 meters
Height chute folded down (m)
2.37 meters
Weight (Kg)
540 Kg
Tyre
16.5 X 6.5-8 6PR
3 pt. Hitch
Cat II
PTO (rpm)
540 rpm
Minimum Power Requirement (hp)
45 hp
Chopping Length (mm)
Min 5 mm
Capacity
35 tons/hour
Model
TWIN
Number of Rows
2
Length (m)
2.09 meters
Height (m)
3.55 meters
Width (m)
2.95 meters
Height chute folded down (m)
2.2 meters
Weight (Kg)
700 Kg
Number of Knives
10
Number of Blowers
5
Tyre
16.5 X 6.5-8 6PR
3 pt. Hitch
Cat II
PTO (rpm)
540 rpm
Minimum Power Requirement (hp)
85 hp
Maximum Permissible Power (hp)
120 hp
Chopping Length (mm)
4.5-6-10-15 mm
Inter Row Distance (cm)
67 - 71 - 75 cm
Capacity
49 tons/hour
