Forage Harvester
The Forage Harvester can cut and chop with great efficiency, a wide range of short grass forages such as, but not limited to, Alfalfa (Lucerne) and Sweet Clover

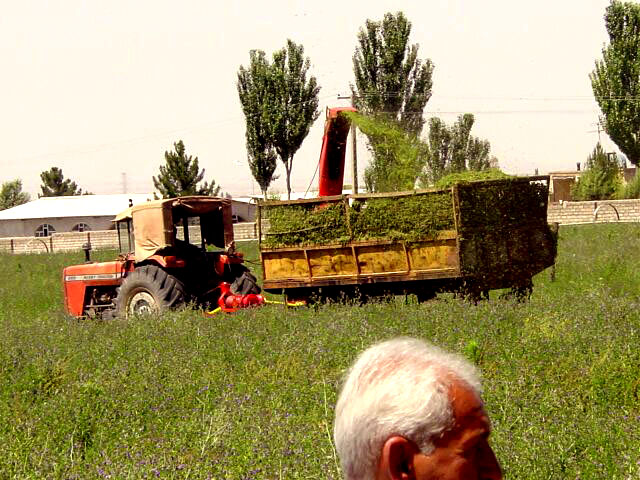

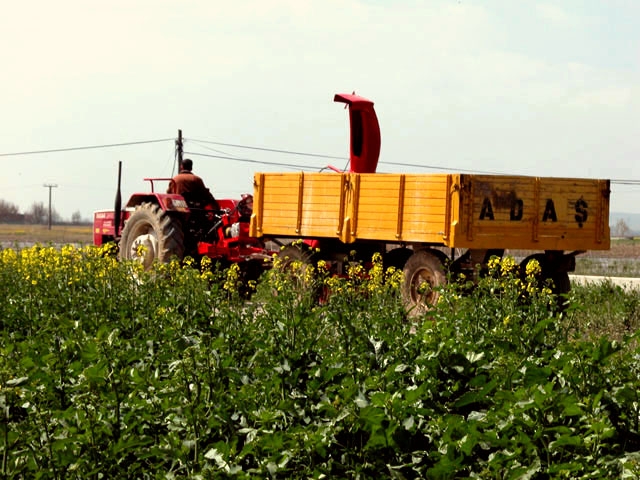

(Berseem). It offers a cutting width of up to 1.5 meters and can harvest up to 20 tons per hour. An accompanying trail hitch allows it to tow a trolley.

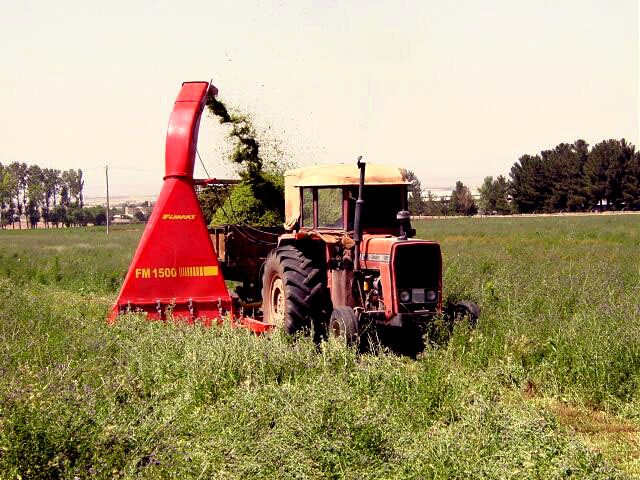

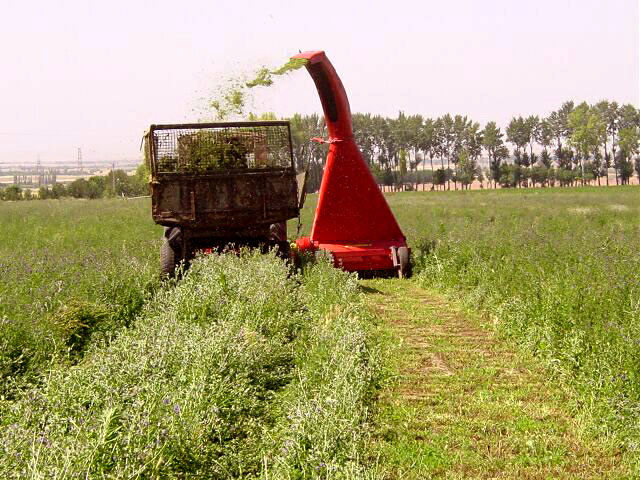

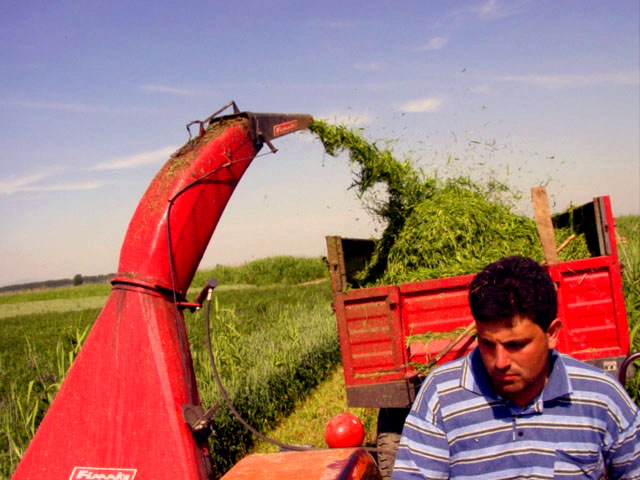

When attached, the chopped harvest is propelled into this trolley via the machine's hydraulically controlled chute system. The machine boosts an operator's
productivity and contributes towards increasing milk yield and reducing labor costs.
The Forage Harvester is manufactured in Turkey by Fimaks Makina A.s. and meets strict
Conformité Européene standards (also known as
CE).

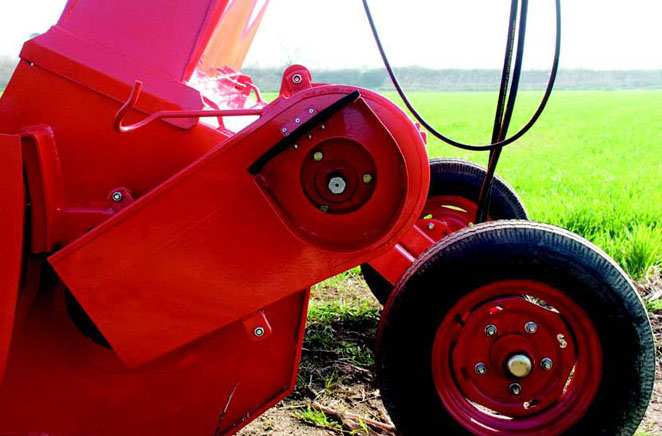

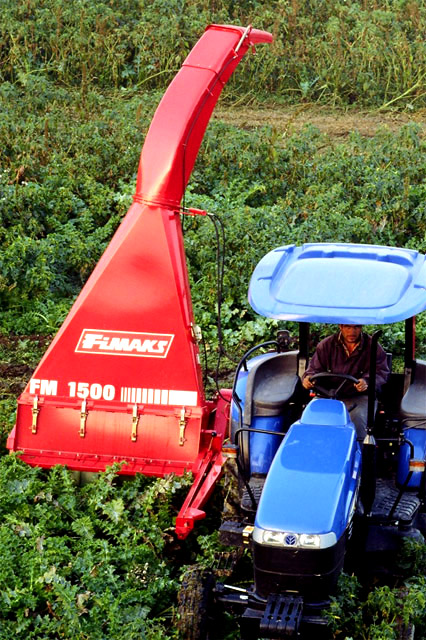

Photos
Specifications

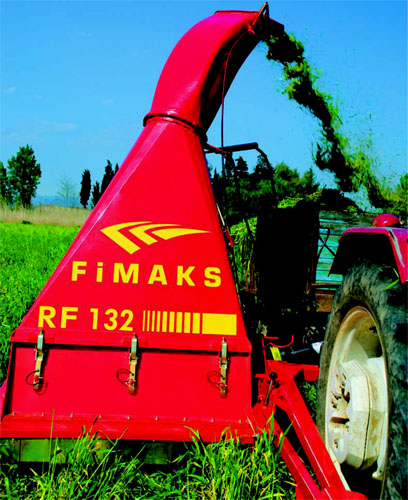

Model
RF 132
Length (Ferry Configuration) (m)
4.5 meters
Length (Harvest Configuration) (m)
2.5 meters
Height (m)
3.15 meters
Width (m)
1.45 meters
Working width (m)
1.3 meters
Weight (Kg)
500 Kg
Productivity (tons/hour)
16 tons/hour
Chopping length (mm)
140 mm
Minimum power requirement (hp)
45 hp
PTO (rpm)
540 rpm

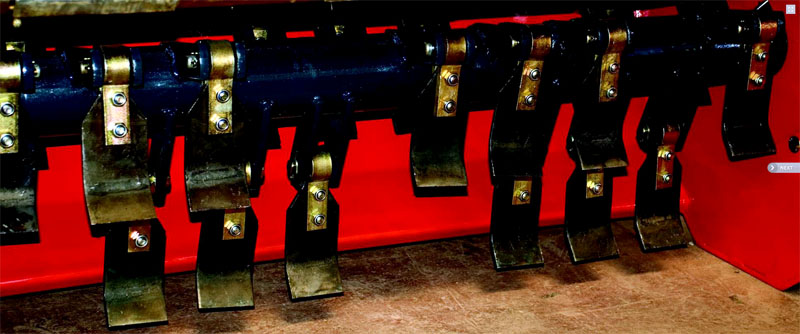

Number of knives
21
Tires
2*(500X12 6PR)

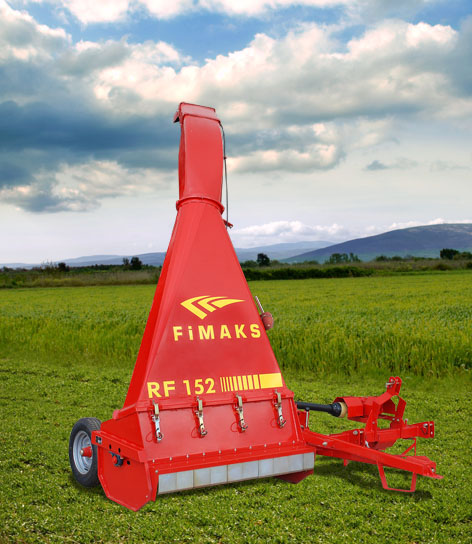

Model
RF 152
Length (Ferry Configuration) (m)
4.5 meters
Length (Harvest Configuration) (m)
2.5 meters
Height (m)
3.25 meters
Width (m)
1.65 meters
Working width (m)
1.5 meters
Weight (Kg)
580 Kg
Productivity (tons/hour)
20 tons/hour
Chopping length (mm)
140 mm
Minimum power requirement (hp)
65 hp
PTO (rpm)
540 rpm
Number of knives
24
Tires
2*(155X80 R13)
