Rotary Disc Mower

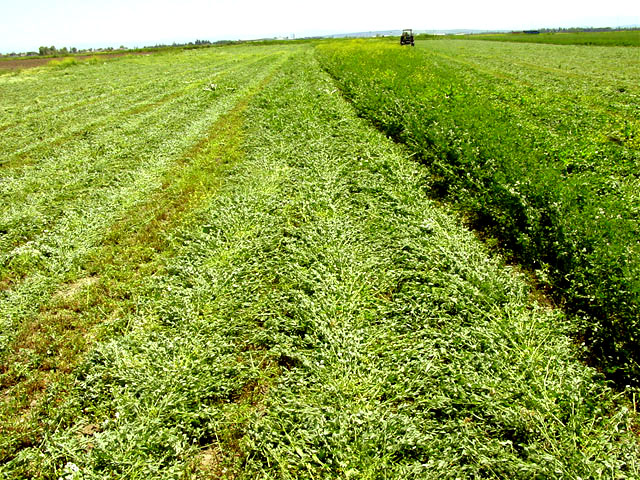

The Rotary Disc Mower is a tractor towed horizontal cutter for cutting grass-type forages such as Alfalfa (Lucerne) etc. After mowing the grass, the machine
leaves it in the field for drying. This increases its shelf life and preserves its nutritional value. The dried hay is then baled at a later stage using a

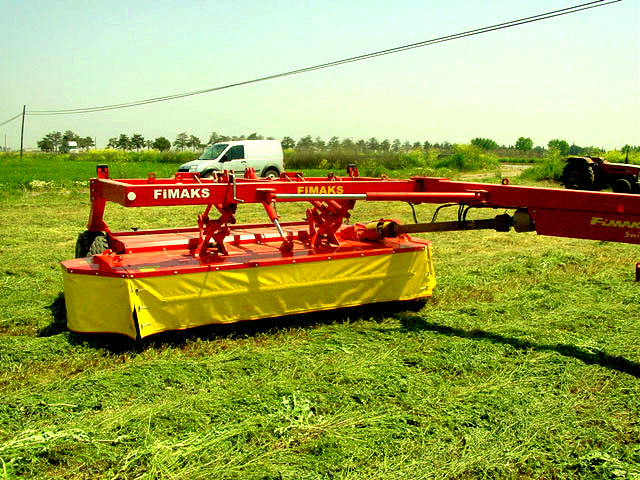

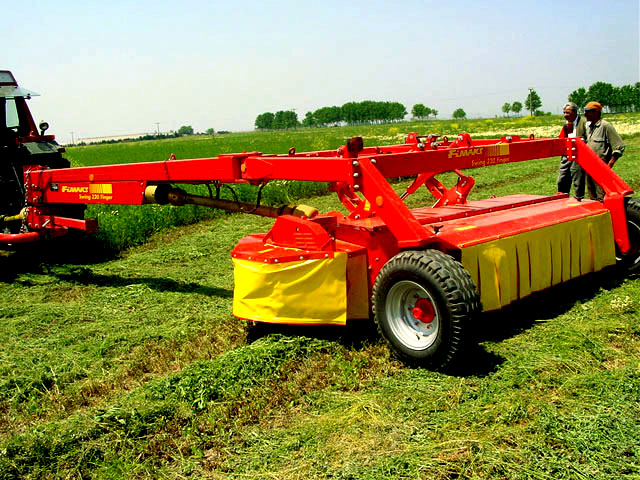

round or square baler. These bales are then stored for year round use. The rotary disc mower is available as the 5-disc, 6-disc, 7-disc, and the trailed rotary
mower. Cutting capacity is the primary differentiator amongst these variants.
The Rotary Disc Mower is manufactured in Turkey by Fimaks Makina A.s. and meets strict
Conformité Européene (CE)
standards.

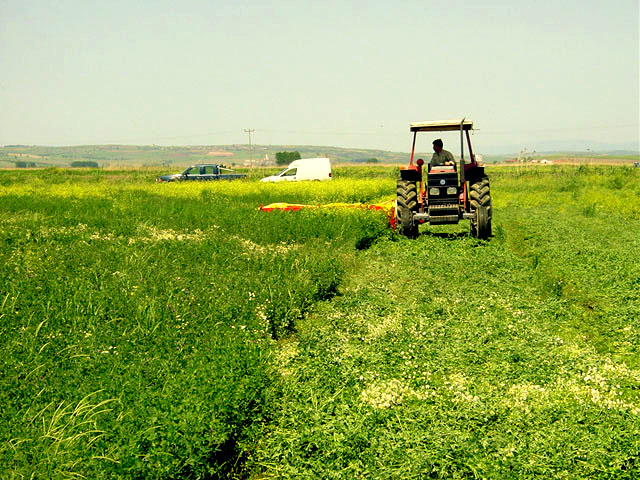

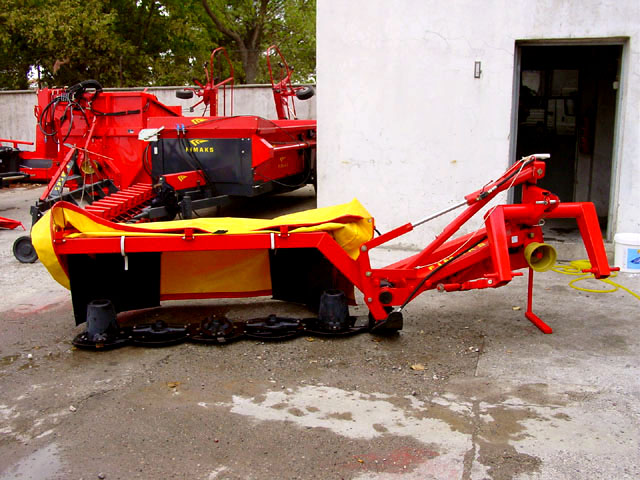

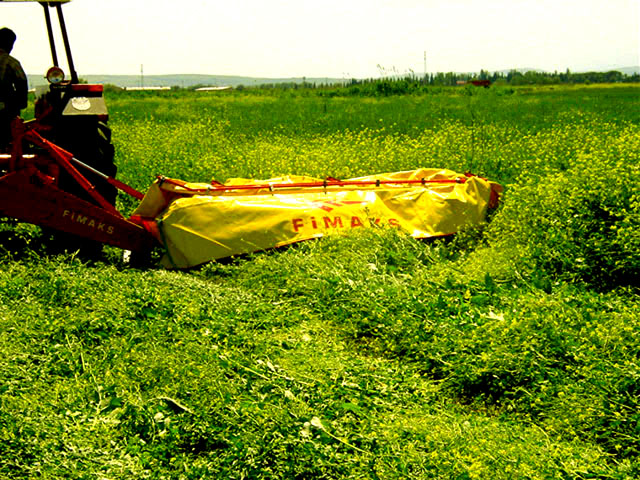

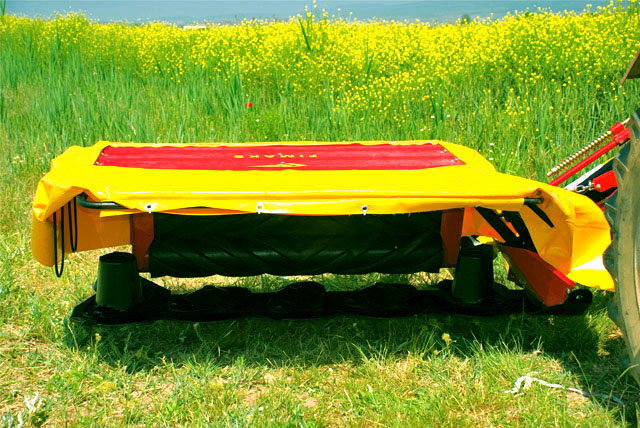

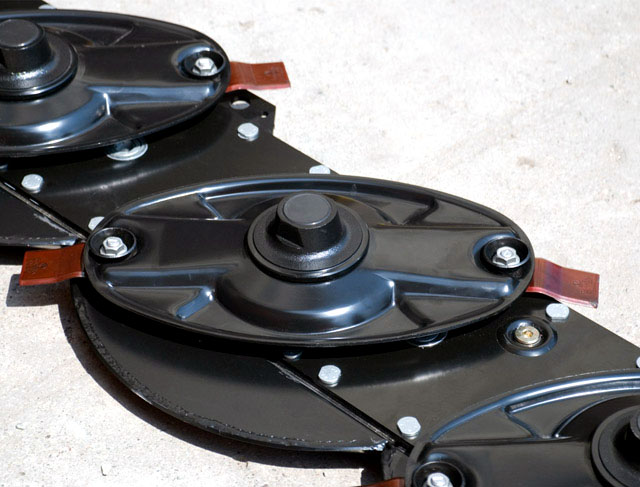

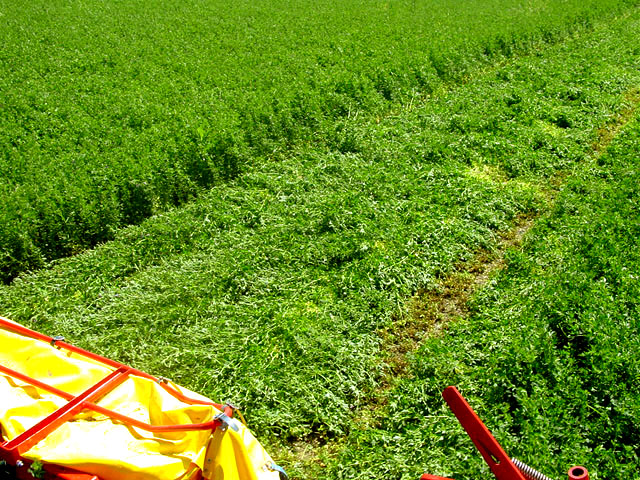

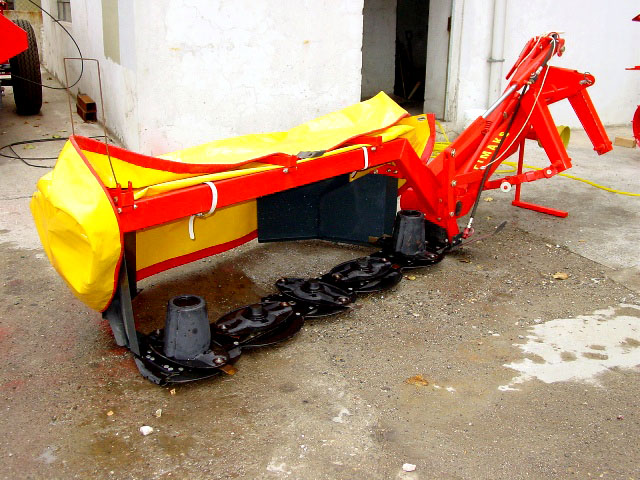

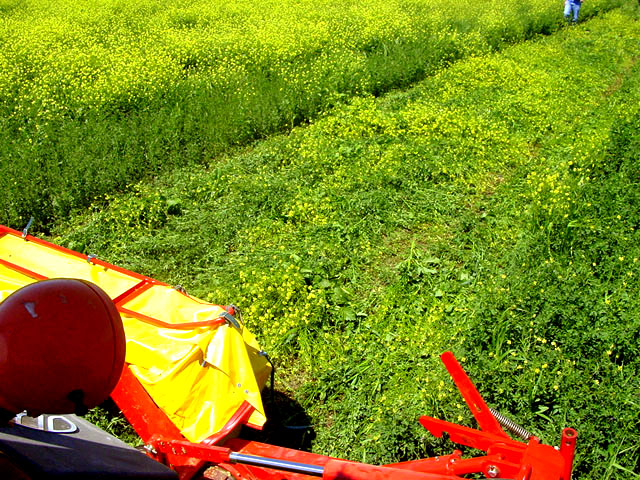

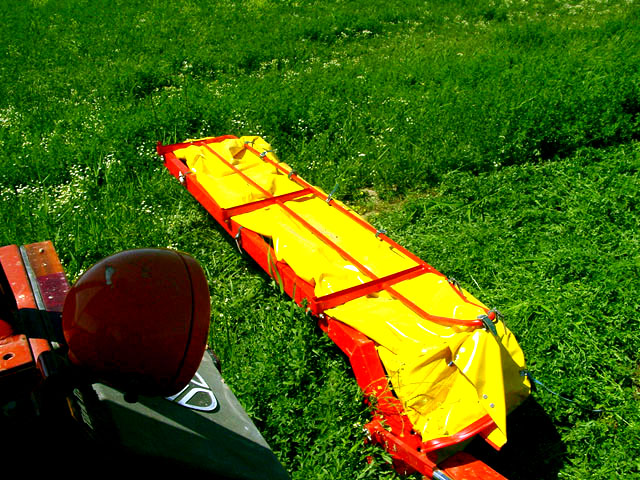

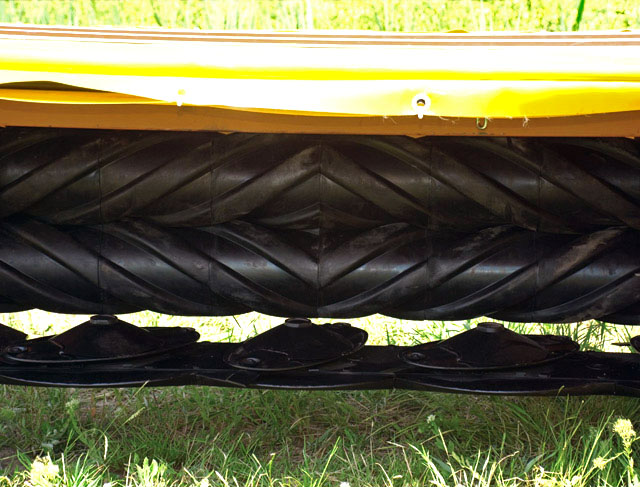

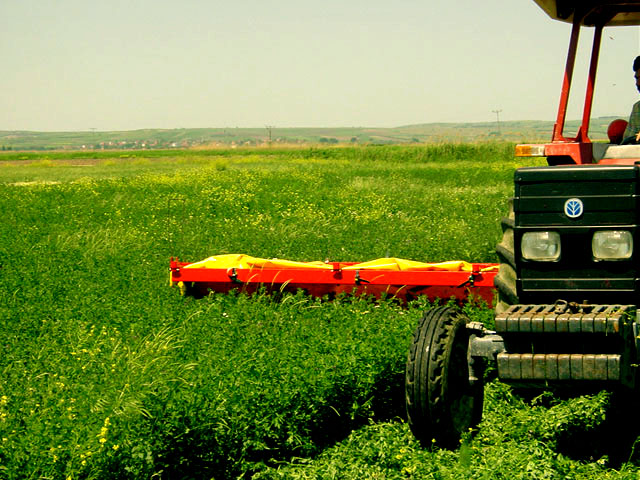

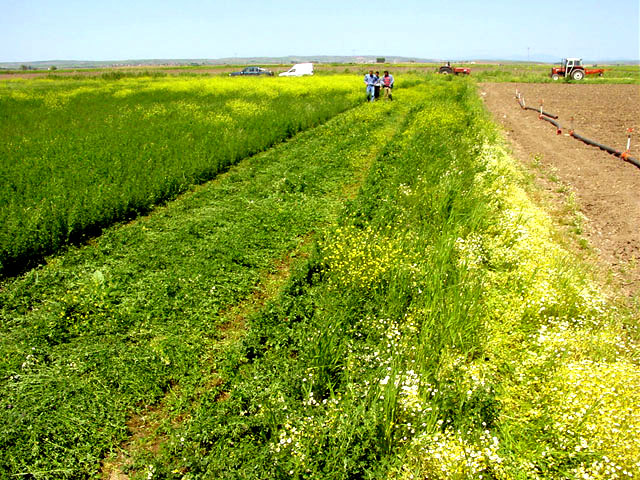

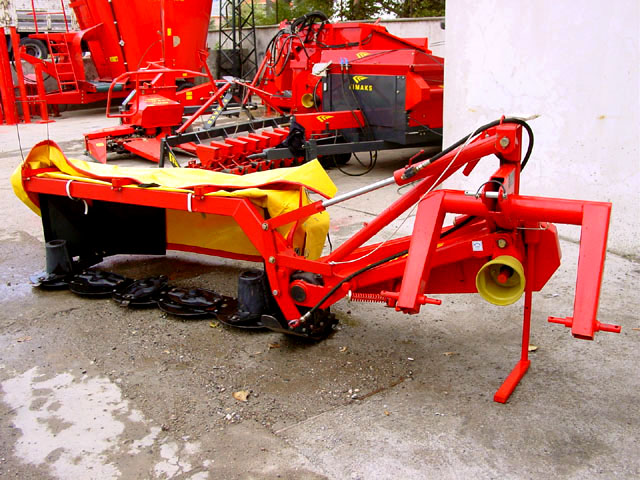

Photos
Specifications
Model
FMDM 210
Work Width (m)
2.10 meters
Number of Discs
5
Number of Knives
10
Disc RPM (rpm)
3,000
PTO (rpm)
540
Weight (Kg)
450 Kg
Power Requirement (hp)
40 hp
Model
FMDM 245
Work Width (m)
2.45 meters
Number of Discs
6
Number of Knives
12
Disc RPM (rpm)
3,000
PTO (rpm)
540
Weight (Kg)
480 Kg
Power Requirement (hp)
45 hp
Model
FMDM 285
Work Width (m)
2.85 meters
Number of Discs
7
Number of Knives
14
Disc RPM (rpm)
3,000
PTO (rpm)
540
Weight (Kg)
510 Kg
Power Requirement (hp)
50 hp
