Feeder Mixer

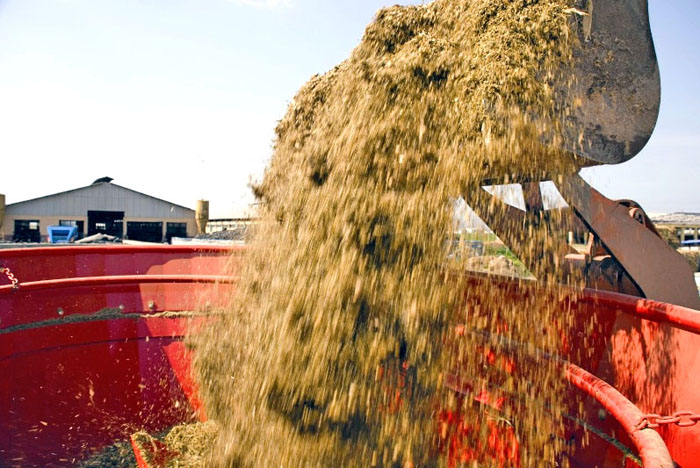

The machine is used to prepare and feed a Total Mixed Ration (TMR) to the herd. A TMR diet is essential for getting a high milk yield and

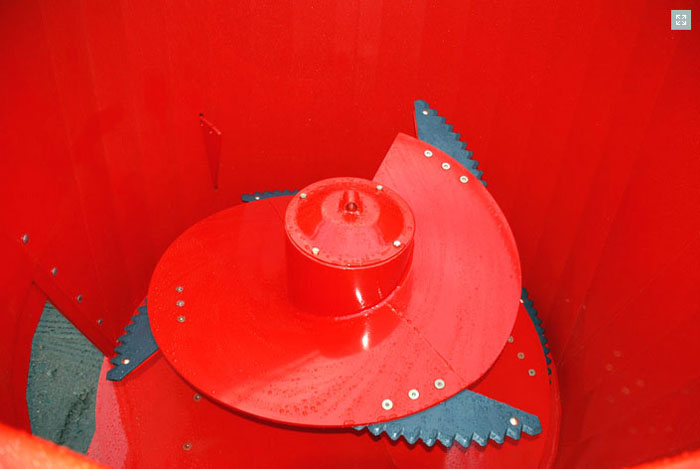

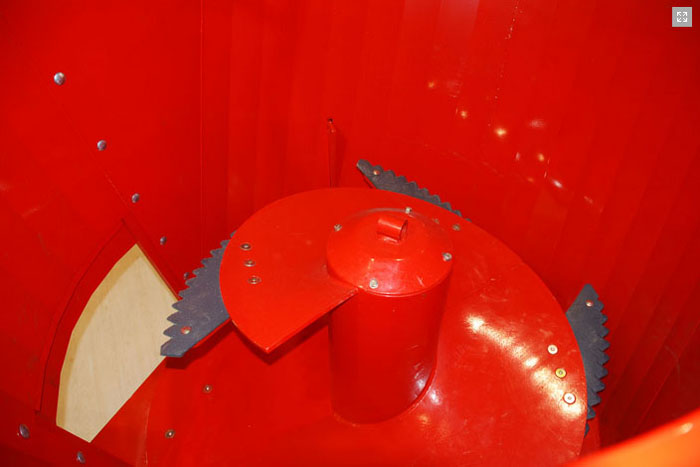

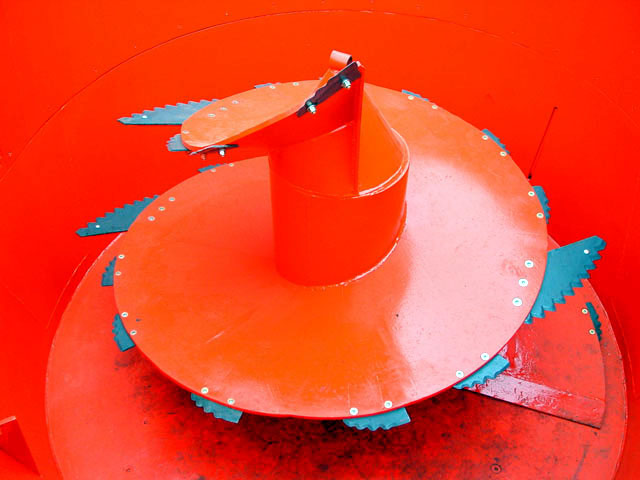

consistent profitability. The machine's gearbox operated mixing knife can grind and mix all types of forages, proteins, grains,

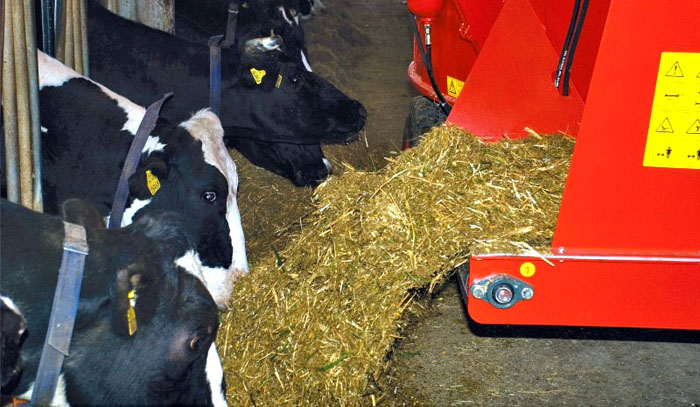

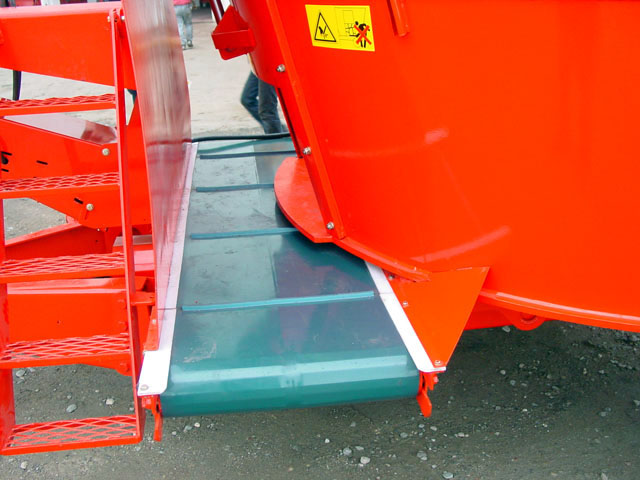

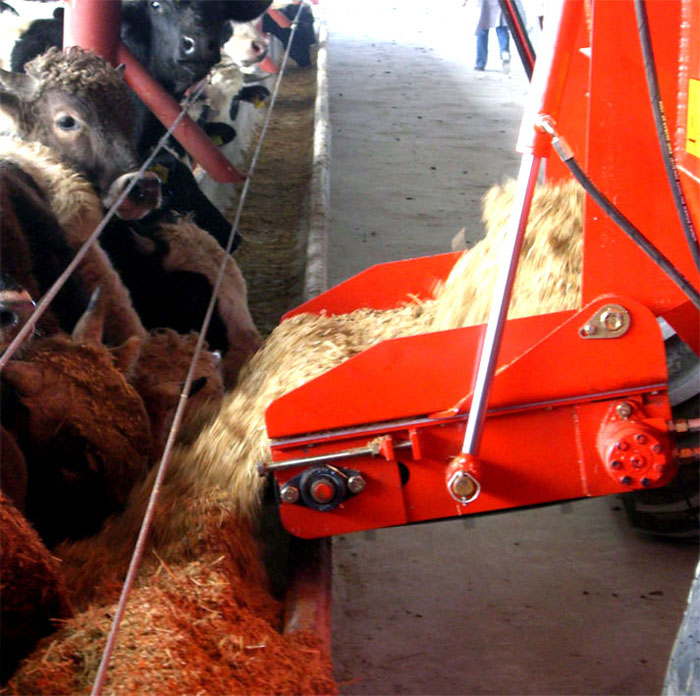

protein supplements, minerals, and vitamins. The resulting TMR can be unloaded onto the barn's feeding tables. Depending on the model, this is
done either via mechanical side gates or a front conveyor belt.

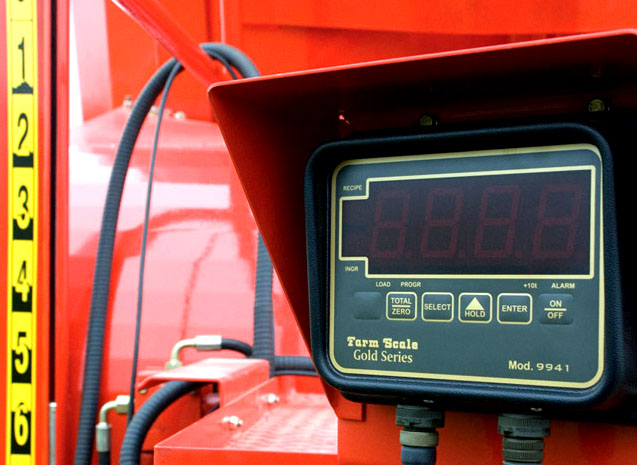

Certain models include a digital weigh scale which can help in preparing the TMR. The machine requires a single operator and can feed hundreds of animals
in a short time. It is available in vertical and horizontal configurations and in various capacities. It is manufactured in Turkey by
Fimaks and meets strict
Conformité Européene (CE)
standards.
- Vertical Feeder Mixer User's Manual
- Horizontal Feeder Mixer User's Manual
- Feeder Mixer Weighing Scale's User's Manual
- Vertical Feeder Mixer Parts Catalog - Side Unloading
- Vertical Feeder Mixer Parts Catalog - Front Unloading
Photos
Specifications

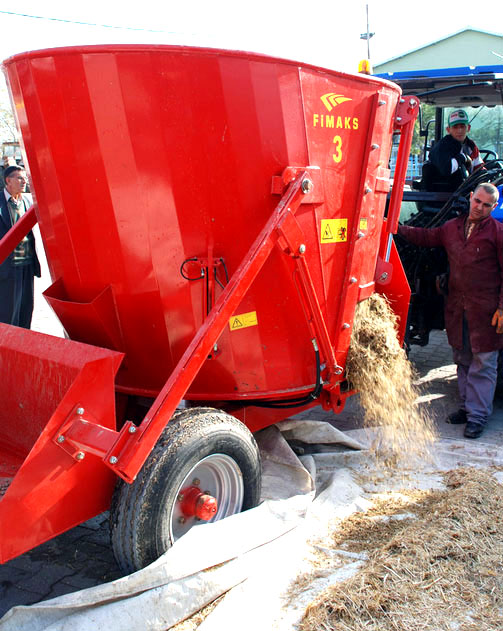

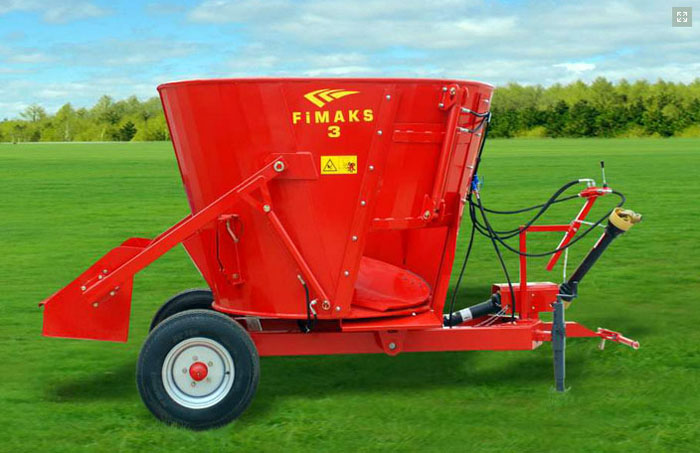

Model
FMV 3
Recommended for a herd size of
20-60
Volume
3 m³
Length (m)
3.20 meters
Length with Bucket (m)
3.80 meters
Height (m)
2.10 meters
Width (m)
1.65 meters
Weight (Kg)
1,100 Kg
Max Useful Load (Kg)
1,050 Kg
Weighing System
Optional
Number of Loadcells
3
Number of Augers
1
Auger Speed (RPM)
50 RPM
Number of Knives on Auger
4
Number of Fixed Knives
2
Minimum Needed Power
30 Hp.
Tires
2 x (235 x 75 x 15)

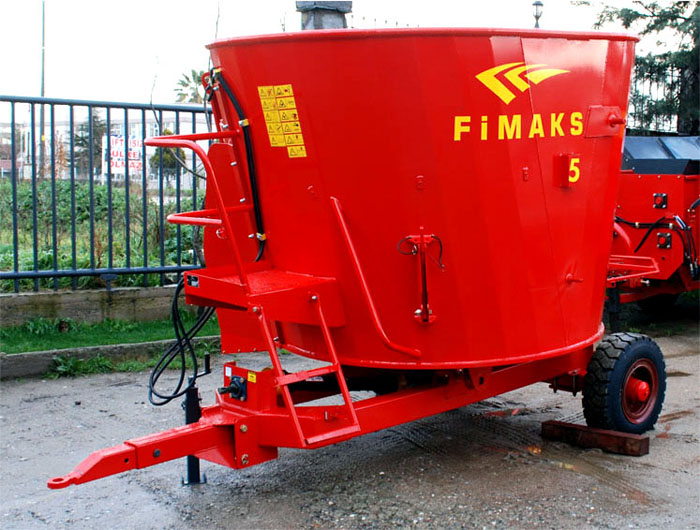

Model
FMV 5
Recommended for a herd size of
60-80
Volume
5 m³
Length (m)
3.30 meters
Length with Bucket (m)
4.00 meters
Height (m)
2.40 meters
Width (m)
2.05 meters
Weight (Kg)
1,600 Kg
Max Useful Load (Kg)
1,750 Kg
Weighing System
Optional
Number of Loadcells
3
Number of Augers
1
Auger Speed (RPM)
32 RPM
Number of Knives on Auger
5
Number of Fixed Knives
2
Minimum Needed Power
40 Hp.
Tires
2 x (700 X 12)
Model
FMV 8S
Recommended for a herd size of
80-120
Volume
8 m³
Length (m)
4.15 meters
Length with Bucket (m)
4.95 meters
Height (m)
2.80 meters
Width (m)
2.15 meters
Weight (Kg)
2,250 Kg
Max Useful Load (Kg)
3,200 Kg
Weighing System
Optional
Number of Loadcells
4
Number of Augers
1
Auger Speed (RPM)
30 RPM
Number of Knives on Auger
15
Number of Fixed Knives
2
Minimum Needed Power
54 Hp.
Tires
2 x (12.5 X 80-15.3)

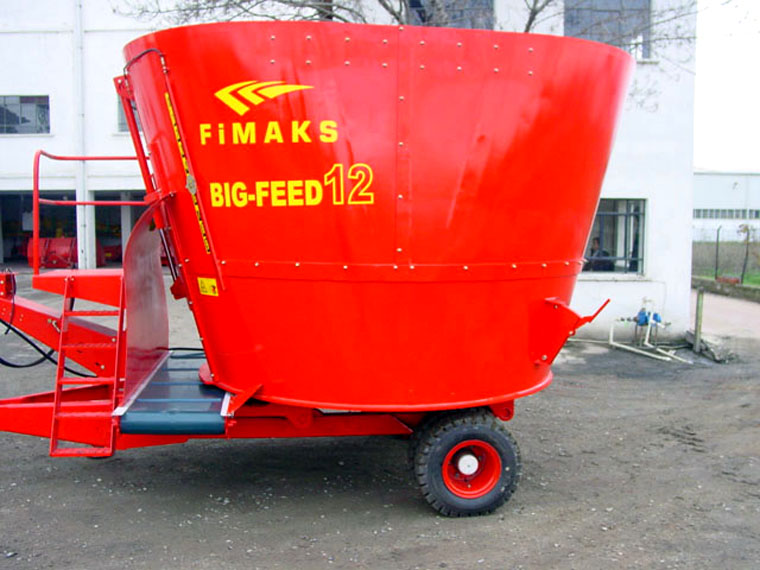

Model
FMV 12S
Recommended for a herd size of
120-150
Volume
12 m³
Length (m)
4.80 meters
Length with Bucket (m)
5.50 meters
Height (m)
2.95 meters
Width (m)
2.4 meters
Weight (Kg)
3,000 Kg
Max Useful Load (Kg)
4,800 Kg
Weighing System
Optional
Number of Loadcells
4
Number of Augers
1
Auger Speed (RPM)
30 RPM
Number of Knives on Auger
18
Number of Fixed Knives
2
Minimum Needed Power
68 Hp.
Tires
2 x (4.00 X 65)
Model
FMV 12F
Recommended for a herd size of
120-150
Volume
12 m³
Length (m)
5.37 meters
Length with Bucket (m)
6.00 meters
Height (m)
2.95 meters
Width (m)
2.295 meters
Weight (Kg)
4,050 Kg
Max Useful Load (Kg)
4,800 Kg
Weighing System
Optional
Number of Loadcells
4
Number of Augers
1
Auger Speed (RPM)
30 RPM
Number of Knives on Auger
18
Number of Fixed Knives
2
Minimum Needed Power
68 Hp.
Tires
2 x (4.00 X 65)
Model
FMV 15F
Recommended for a herd size of
150-200
Volume
15 m³
Length (m)
5.47 meters
Length with Bucket (m)
6.17 meters
Height (m)
3.35 meters
Width (m)
2.295 meters
Weight (Kg)
4,250 Kg
Max Useful Load (Kg)
6,000 Kg
Weighing System
Optional
Number of Loadcells
4
Number of Augers
1
Auger Speed (RPM)
30 RPM
Number of Knives on Auger
18
Number of Fixed Knives
2
Minimum Needed Power
75 Hp.
Tires
2 x (4.00 X 65)
Model
FMV 20F
Recommended for a herd size of
200+
Volume
20 m³
Length (m)
7.68 meters
Length with Bucket (m)
8.48 meters
Height (m)
2.95 meters
Width (m)
2.295 meters
Weight (Kg)
7,060 Kg
Max Useful Load (Kg)
8,000 Kg
Weighing System
Optional
Number of Loadcells
6
Number of Augers
2
Auger Speed (RPM)
30 RPM
Number of Knives on Auger
36
Number of Fixed Knives
4
Minimum Needed Power
100 Hp.
Tires
4 x (4.00 X 65)
