Screw Press Separator
Raw manure is difficult to manage. It is messy to transport, costly to store, and an environmental hazard if not separated and stored properly. It causes odor and
harbors disease carrying insects. By separating manure, not only are these inherent disadvantages minimized, but this also turns this otherwise problematic waste
material into a useful byproduct. Some of these additional benefits of manure separation include using the solids as organic fertilizers and as bedding.

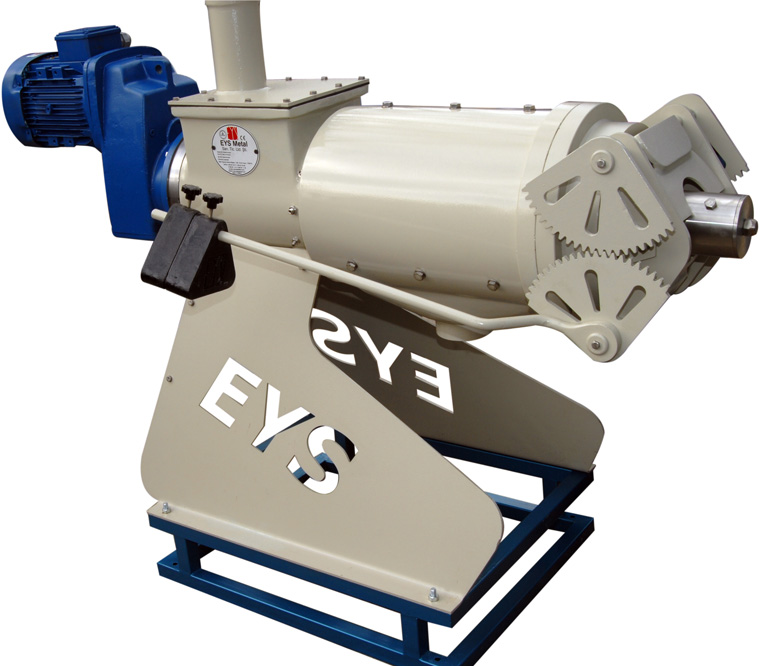

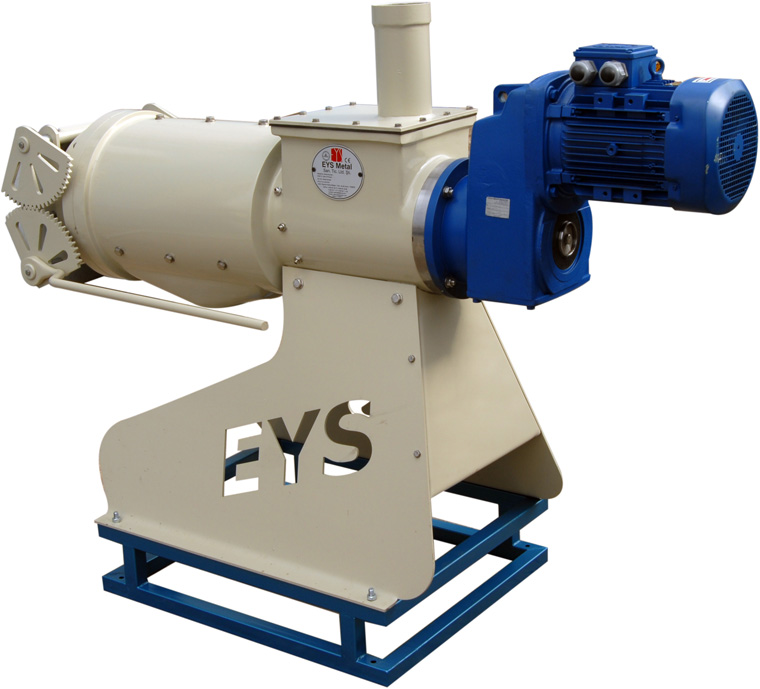

The Screw Press Separator is designed to mechanically separate solid and liquid fractions of fiber-rich materials such as animal manure. The machine's robust design
handles all types of livestock manure with ease, yielding a high output rate of very dry solids, and a liquid fraction containing only minimal amounts of suspended
solids. It is manufactured in Turkey by EYS and meets strict
Conformité Européene (CE)
standards.
- EYS Screw Press Separator Brochure
- EYS Screw Press Separator Poster
- EYS Screw Press Separator User's Manual

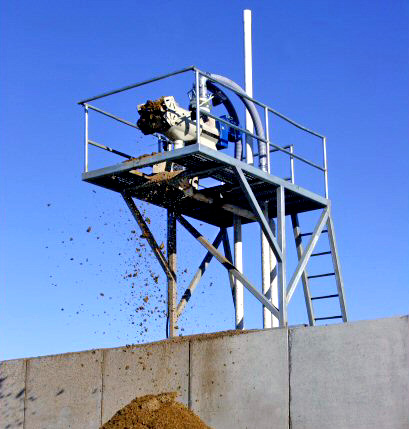

Photos
Specifications
Model
02G
Throughput Capacity (m³/hour)
65 m³/hour
Body Material
Cast Iron
Screw Material
Stainless Steel
Screw Coating
Tungsten Carbide
Length (m)
1.90 meters
Width (m)
0.90 meters
Height (m)
1.21 meters
Weight (Kg)
650 Kg
Power Requirement (KW)
5.5 KW
